Metal Roof Curbs
![](https://images.ctfassets.net/gz50xeghgvm0/yxxyw9KfRgz4us6cAjDor/fb1028a9c8a0b63219816107529e7c89/CPM-1.jpg?fit=thumb&w=300&w=300)
![](https://images.ctfassets.net/gz50xeghgvm0/yxxyw9KfRgz4us6cAjDor/fb1028a9c8a0b63219816107529e7c89/CPM-1.jpg?fit=thumb&w=50&w=50)
CPM-1 Metail Building Roof Curb
Standard Features
Designed to meet roof manufacturer's needs and requirements.
18 ga. Or 14 ga. Prime galvalume steel construction.
1 ½” thick, 3# density fiberglass insulation – r-6.5 thermal rating.
Corners mitered and welded to be watertight.
Available in custom colors to match painted roof.
Loose clips for over-over or over-under installation.
Downloads
Specifications
- Specifications
- Metal Bldg. Curb Spec. 07720
![](https://images.ctfassets.net/gz50xeghgvm0/24eTIi7rzVuKvkuEDnspTn/20d642d819b995b8a55b3771231913ba/CPM-3.jpg?fit=thumb&w=300&w=300)
![](https://images.ctfassets.net/gz50xeghgvm0/24eTIi7rzVuKvkuEDnspTn/20d642d819b995b8a55b3771231913ba/CPM-3.jpg?fit=thumb&w=50&w=50)
CPM-3 Metail Building Roof Curb
Standard Features
Designed to meet roof manufacturers' needs and requirements.
18 ga. Or 14 ga. Prime galvalume steel construction.
1 ½” thick, 3# density fiberglass insulation – r-6.5 thermal rating.
Corners mitered and welded to be watertight.
Available in custom colors to match painted roof.
Clips welded on for over-over installation.
Downloads
Specifications
- Specifications
- Metal Bldg. Curb Spec. 07720
![](https://images.ctfassets.net/gz50xeghgvm0/5tawlrJhpIMa4vGTVLctko/24a06256bde61e7347e2ab610157d75b/CPM-5.jpg?fit=thumb&w=300&w=300)
![](https://images.ctfassets.net/gz50xeghgvm0/5tawlrJhpIMa4vGTVLctko/24a06256bde61e7347e2ab610157d75b/CPM-5.jpg?fit=thumb&w=50&w=50)

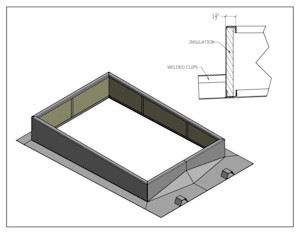

CPM-5 Metail Building Roof Curb
Standard Features
Designed to meet roof manufacturer's needs and requirements.
18 ga. Or 14 ga. Prime galvalume steel construction.
1 ½” thick, 3# density fiberglass insulation – r-6.5 thermal rating.
Corners mitered and welded to be watertight.
Available in custom colors to match painted roof.
Clips welded on for over-under installation.
Downloads
Specifications
- Specifications
- Metal Bldg. Curb Spec. 07720
![](https://images.ctfassets.net/gz50xeghgvm0/6yGm4dv7iaxgjKqFuQTeWL/8ebd9e7021feb1dbef1ce2750fa71319/CPM-7.jpg?fit=thumb&w=300&w=300)
![](https://images.ctfassets.net/gz50xeghgvm0/6yGm4dv7iaxgjKqFuQTeWL/8ebd9e7021feb1dbef1ce2750fa71319/CPM-7.jpg?fit=thumb&w=50&w=50)

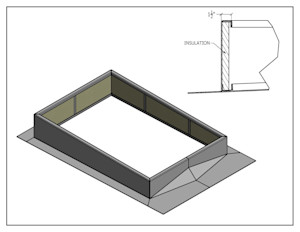

CPM-7 Metail Building Roof Curb
Standard Features
Designed to meet roof manufacturer's needs and requirements.
18 ga. Or 14 ga. Prime galvalume steel construction.
1 ½” thick, 3# density fiberglass insulation – r-6.5 thermal rating.
Corners mitered and welded to be watertight.
Available in custom colors to match painted roof.
No clips provided for the flat flange installation.
Downloads
Specifications
- Specifications
- Metal Bldg. Curb Spec. 07720
![](https://images.ctfassets.net/gz50xeghgvm0/5bSfkajZ7O0jb7vJRy0djV/b8220c5f7fc890ec43cfed0d3e4a8087/CPM-9.jpg?fit=thumb&w=300&w=300)
![](https://images.ctfassets.net/gz50xeghgvm0/5bSfkajZ7O0jb7vJRy0djV/b8220c5f7fc890ec43cfed0d3e4a8087/CPM-9.jpg?fit=thumb&w=50&w=50)
CPM-9 Metail Building Roof Curb
Standard Features
Designed to meet roof manufacturer's needs and requirements.
18 ga. Or 14 ga. Prime galvalume steel construction.
1 ½” thick, 3# density fiberglass insulation – r-6.5 thermal rating.
Corners mitered and welded to be watertight.
Available in custom colors to match painted roof.
Loose clips are provided on the downhill side of the curb for over-under installation
Downloads
Specifications
- Specifications
- Metal Bldg. Curb Spec. 07720
