METAL BUILDING CURBS

American / Kirby / Nucor / NCI Warranty / Standard

STANDARD SPECIFICATIONS

  • DESIGNED TO MEET ROOF MANUFACTURERS NEEDS AND REQUIREMENTS.
  • 18 GA. OR 14 GA. PRIME GALVALUME STEEL CONSTRUCTION.
  • 1 ½” THICK, 3# DENSITY FIBERGLASS INSULATION – R-6.5 THERMAL RATING.
  • CORNERS MITERED AND WELDED TO BE WATER TIGHT.
  • AVAILABLE IN CUSTOM COLORS TO MATCH PAINTED ROOF.

CPM-1

  • LOOSE CLIPS FOR OVER-OVER OR OVER-UNDER INSTALLATION.

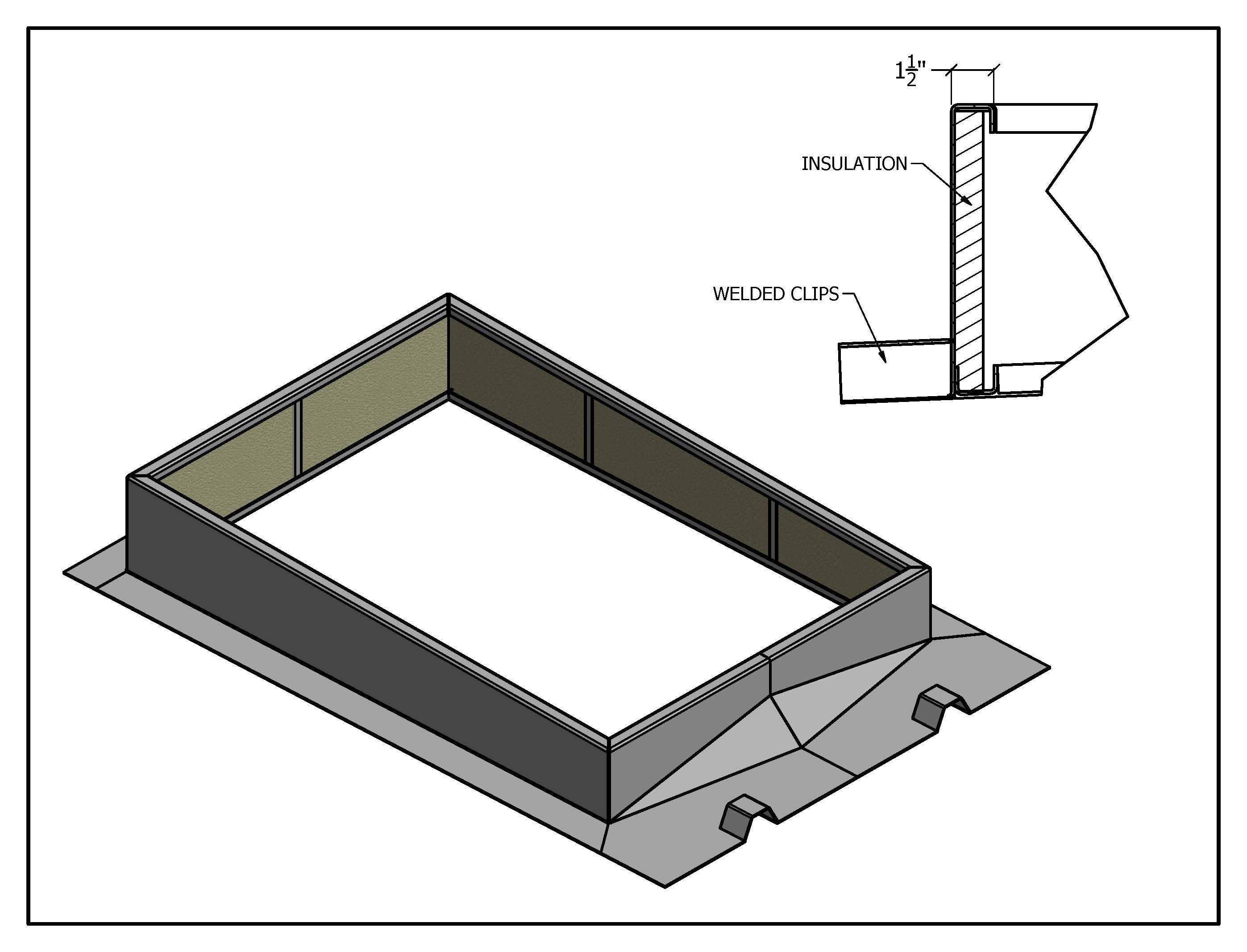

CPM-3

  • CLIPS WELDED ON FOR OVER-OVER INSTALLATION.

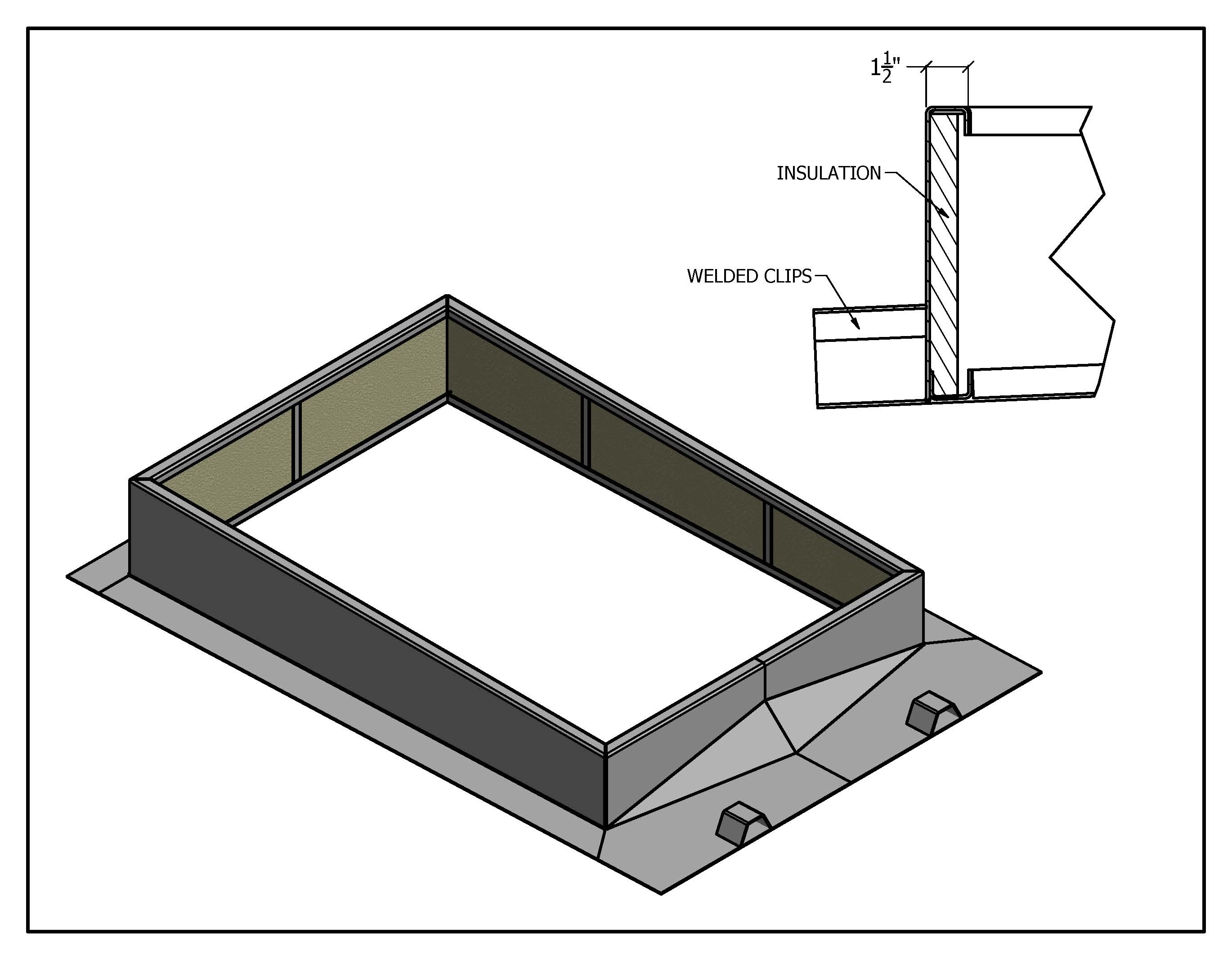

CPM-5

  • CLIPS WELDED ON OVER-UNDER INSTALLATION.

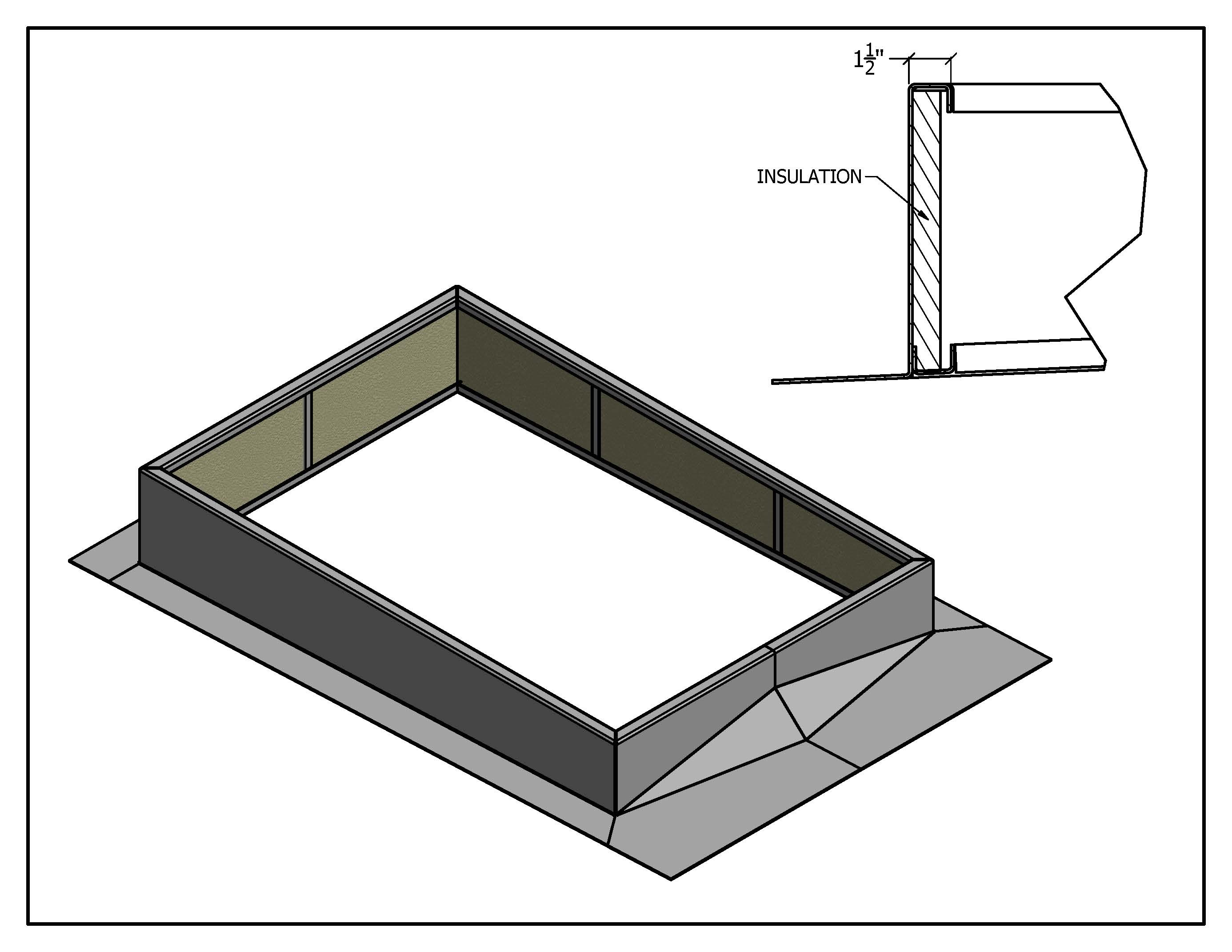

CPM-7

  • NO CLIPS PROVIDED FOR FLAT FLANGE INSTALLATION.

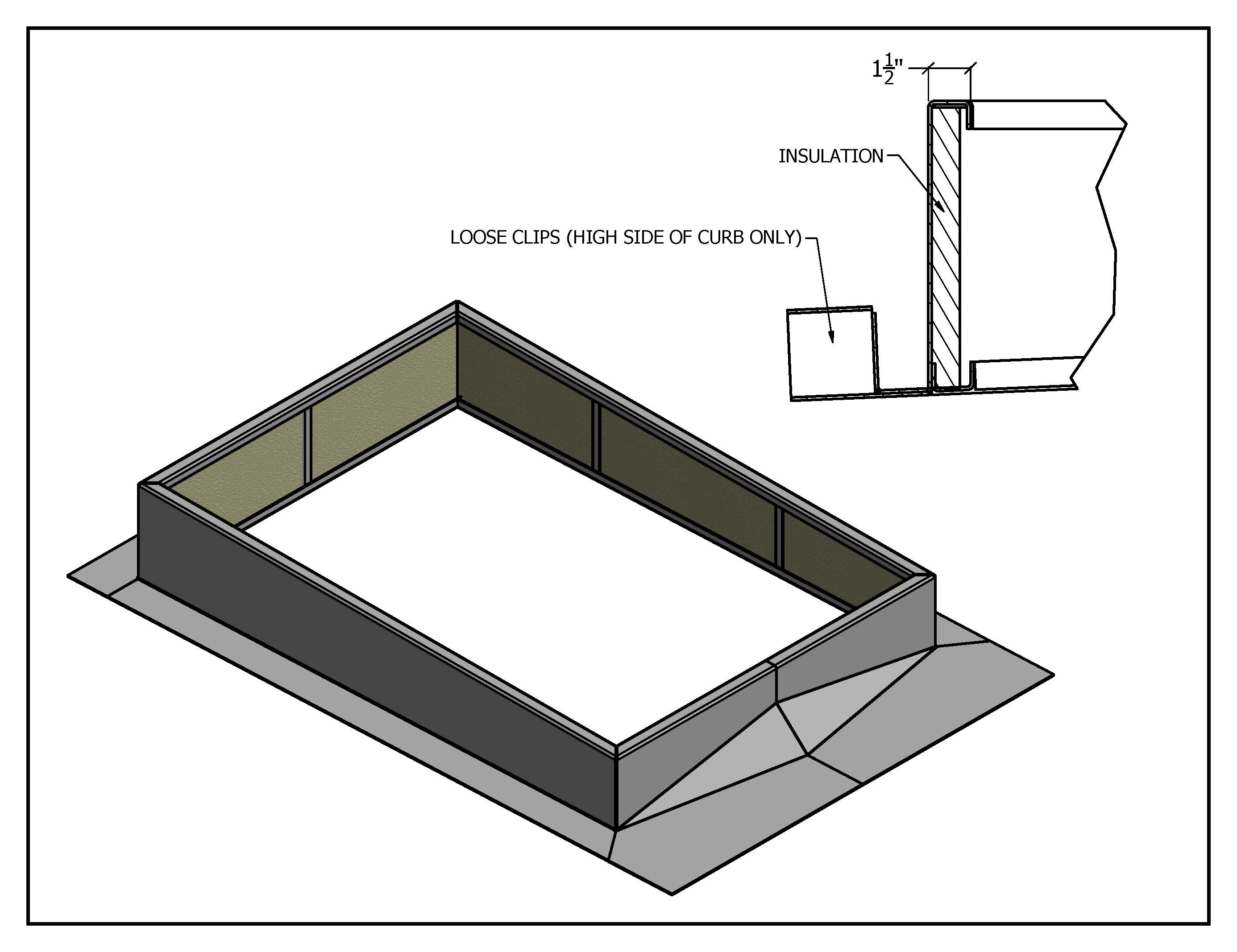

CPM-9

  • LOOSE CLIPS PROVIDED ON HIGH SIDE OF CURB ONLY FOR OVER-UNDER INSTALLATION.

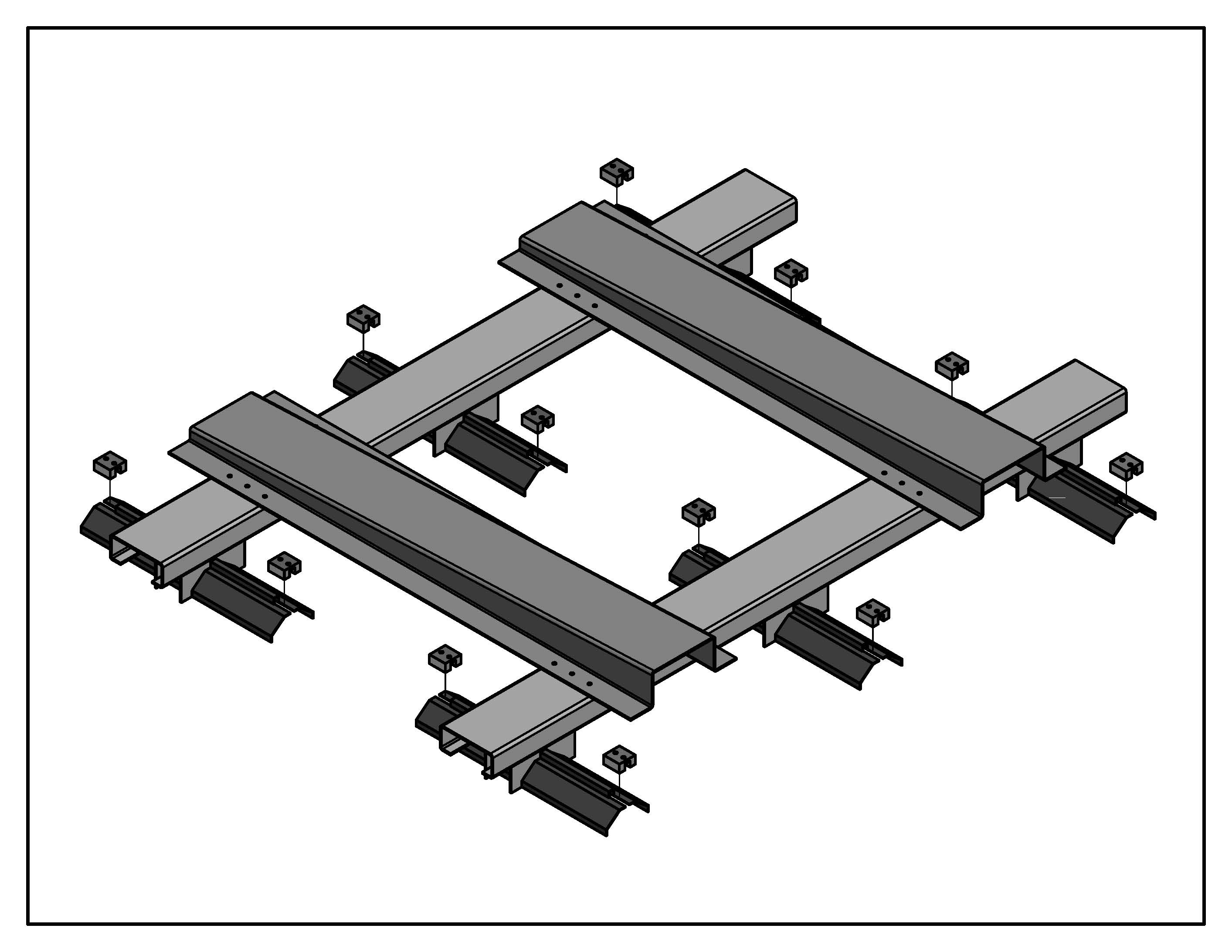

PLATFORM SUPPORT SYSTEM

  • RIB-CAP STRIPS AND CLAMPS TO MATCH ROOF PANEL.
  • ADJUSTABLE FOR EASY FIELD INSTALLATION AND USE.
  • NO PENETRATIONS REQUIRED FOR INSTALLATION.

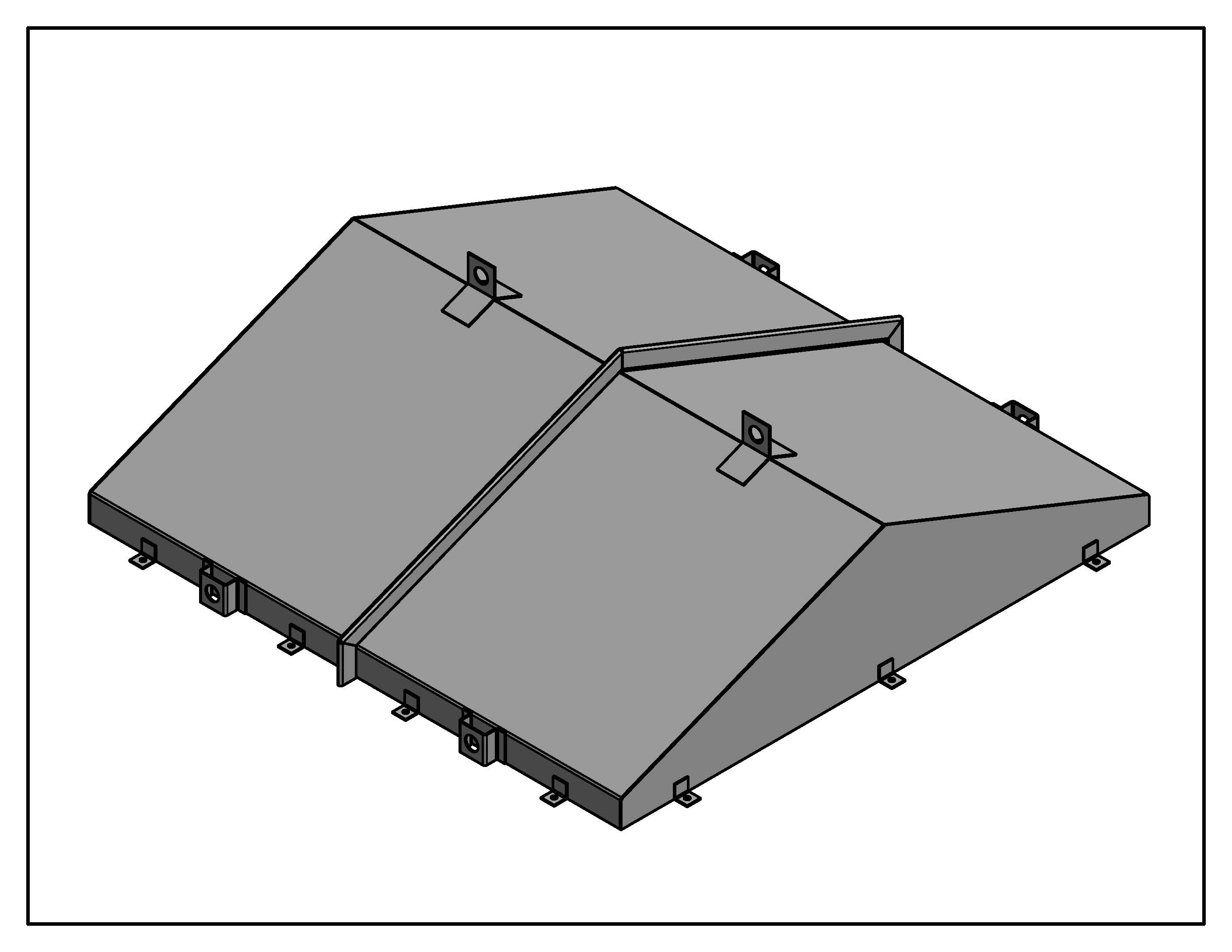

STRUCTURAL DOGHOUSE COVER

  • 1” THICK DUCT LINER INSULATION R-4.2 THERMAL RATING.
  • SLOPED FOR WATER RUN-OFF.
